NOTE:

There is a Set(2 Units) to achieve 208/240Vac AC Output.  One Unit AC Output is 100/105/110Vac(Settable). "208/240Vac AC Output" need 2 units In Parallel at least. Maximum number of parallel connections is 6 units.

Q&A:

Question: Can a single unit output 240V split phase power?

Answer: It needs at least 2 units can output 240V split phase power

Features:

【Pure Sine Wave All-in-One Inverter】5000W DC 48V hybrid solar inverter, 120/208V/240Vac Output pure sine wave inverter( single-phase,split Phase and three-phase ), Built-in 100A MPPT solar charge controller,Max.PV Power：5500W, Max.PV Input VOC: 500V DC, Max PV Charging Current: 100A , support 48V Lead acid or lithium battery or batteryless mode; support Parallel up to 6 inverters.

【Peak-Valley Electricity Tariff】Through sectional charging/discharge function, users can freely set the battery discharge time or mains charging time within the rangeof 00:00 to 23:59(3 definable periods) according to your local electricity tariff standards; BT1ST Mode–Sectional Charging Function(Mains Charge); AC1ST Mode–Sectional Discharge Function(Battery Discharge).

【Intelligent Power Saving】Power saving mode available to reduce no-load loss, when the ECO mode is enabled, if the load is below 50W, the inverter output is delayed for 5 mins and then the output is turned off. When the hull switch is pressed to the ""OFF"" State, and then pressed to the ""ON"" State, the inverter will resume the output.

【4 Charge/ 2 Discharge Modes】Support 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; mains bypass and inverter output two output mode, uninterrupted power supply; Anti-backflow grid connection function, support for use without battery, can be set up for on-grid power generation.

【Multiple Protection】Dual Cooling fan design,efficiently dissipate heat;Durable finish with high anti-corrosion,dust-proof design prevent dust from coming inside the inverter, prolong lifespan of the inverter; Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status, and complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

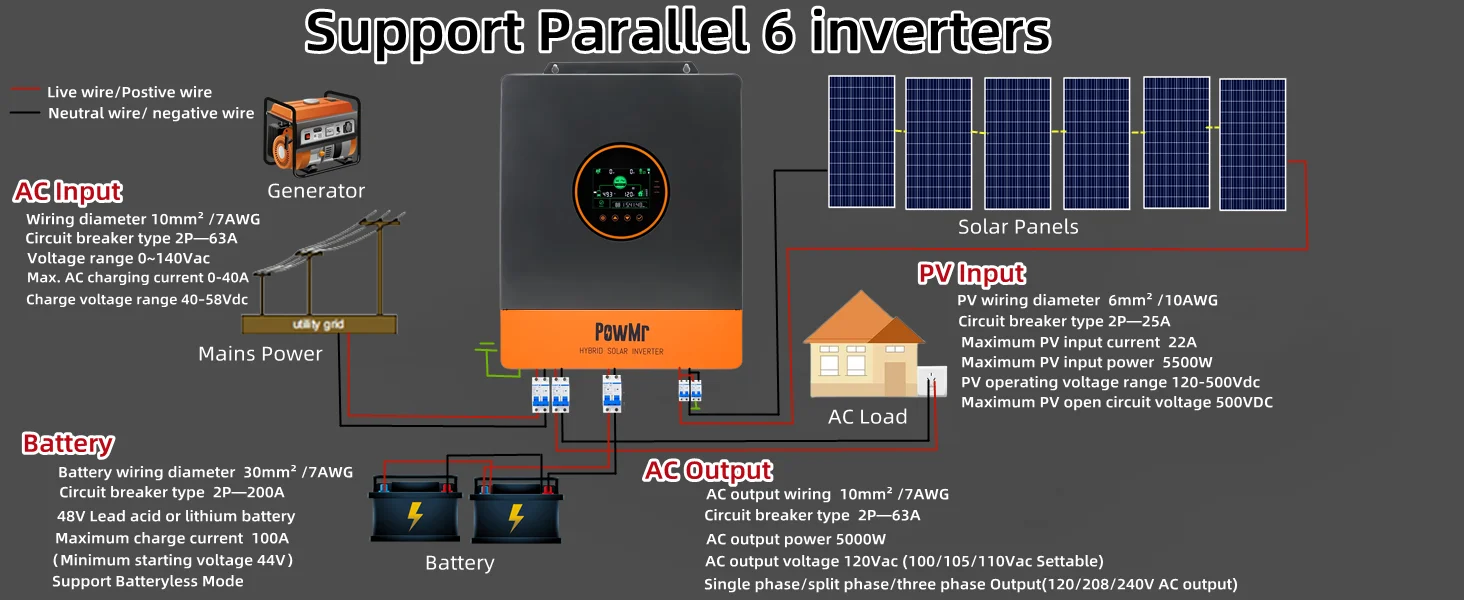

Link Diagram
Split Phase Connect

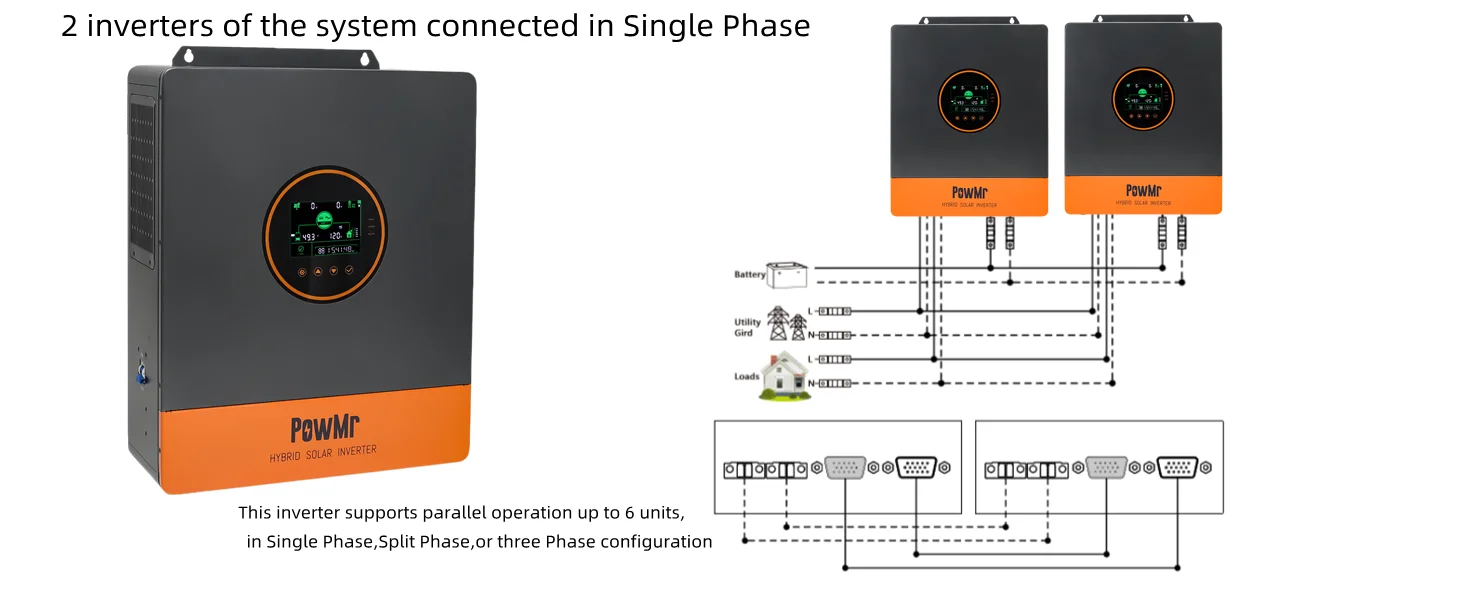

Single Phase Connect

Three Phase Connect
